Assembly of a Stainless Steel Chassis Probe

At H&S Manufacturing, we are industry leaders in custom manufacturing solutions for a wide variety of industries. This client was dissatisfied with the quality of products they were receiving from their current supplier and came to us for an improved product.

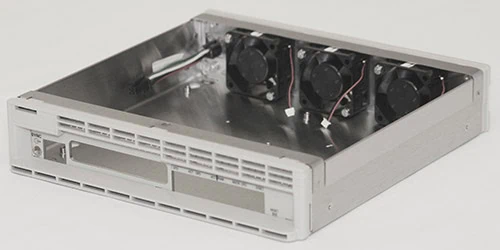

This chassis probe assembly was part of a frequency tester and constructed from 304A stainless steel. It was imperative that these components were free of any defects. We engineered the process and implemented procedures that would ensure these requirements would be met. Various CNC metal fabrication capabilities were used on this project including forming, laser cutting, and CNC punching and milling. Requiring fans and procured plastic bezels, this chassis was assembled utilizing our mechanical assembly capabilities and had final dimensions of 8.270″ x 7.341″ x 1.669″.

This product had a natural stainless steel finish and corrosion resistance was improved through passivation per AMS-QQ-P-35C. In addition, the lid for this unit received a durable powder coated finish.

Our quality measures for this project were essential to meeting the zero-defect requirement; we performed in-process testing for dimensional integrity and implemented 100% visual inspections on each part. We upheld tolerances of ±.005″ and fulfilled the requirements of the customer for a zero defect product.

Please feel free to contact us to learn more about this chassis probe fabrication project or see additional details in the following table.

HIGHLIGHTS OF THIS FABRICATION OF A STAINLESS STEEL CHASSIS PROBE ASSEMBLY PROJECT

Product Description

Frequency Tester

Custom fabrication Capabilities Applied/Processes

Primary:
Material Procurement
Brake Press Forming
Laser Cutting
CNC Milling
Roll Forming
Drilling
Shearing
Grain Sanding
Mechanical Assembly
Powder Coating

Secondary:
Assembly
Deburring
Passivation
PEM Insertion
Part Marking

Equipment Used to Manufacture Part

Amada Vipros 358 King Punching Cell, Amada RG-80 8 ft. Brake, Haeger Hardware Insertion Machine

Overall Part Dimensions

8.270 X 7.341 X 1.669

Tightest Tolerances

+/- .005

Material Used

304A Stainless Steel

Material Finish

Passivated QQ-P-35C

In process testing/inspection performed

Dimensional Inspection, Visual Inspection

Industry for Use

Testing

Volume

250

Delivery/Turnaround Time

4 weeks

Delivery Location

Angleton, TX

Standards Met

Customer Specifications, 2D CAD DrawingQQ-P-35C

Product Name

Chassis Probe Assembly
